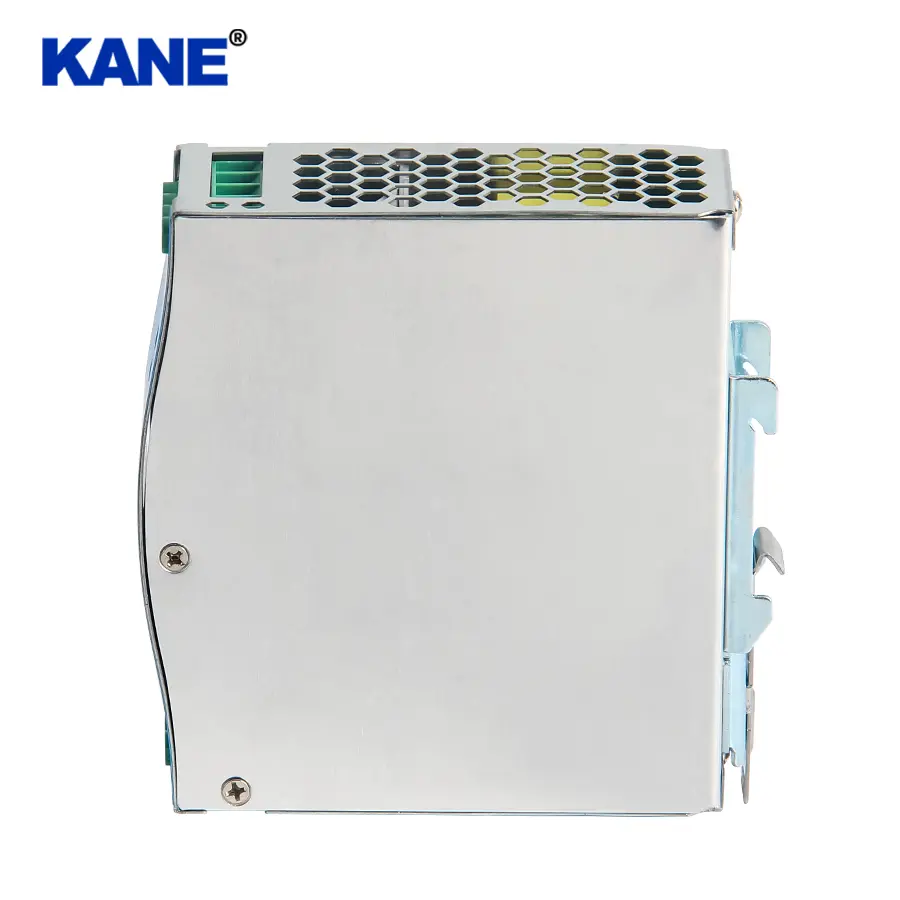

NDREDR Series 75~480W Economical DIN Rail Power
Product Details
Features
●Universal full range input:90-264 VAC

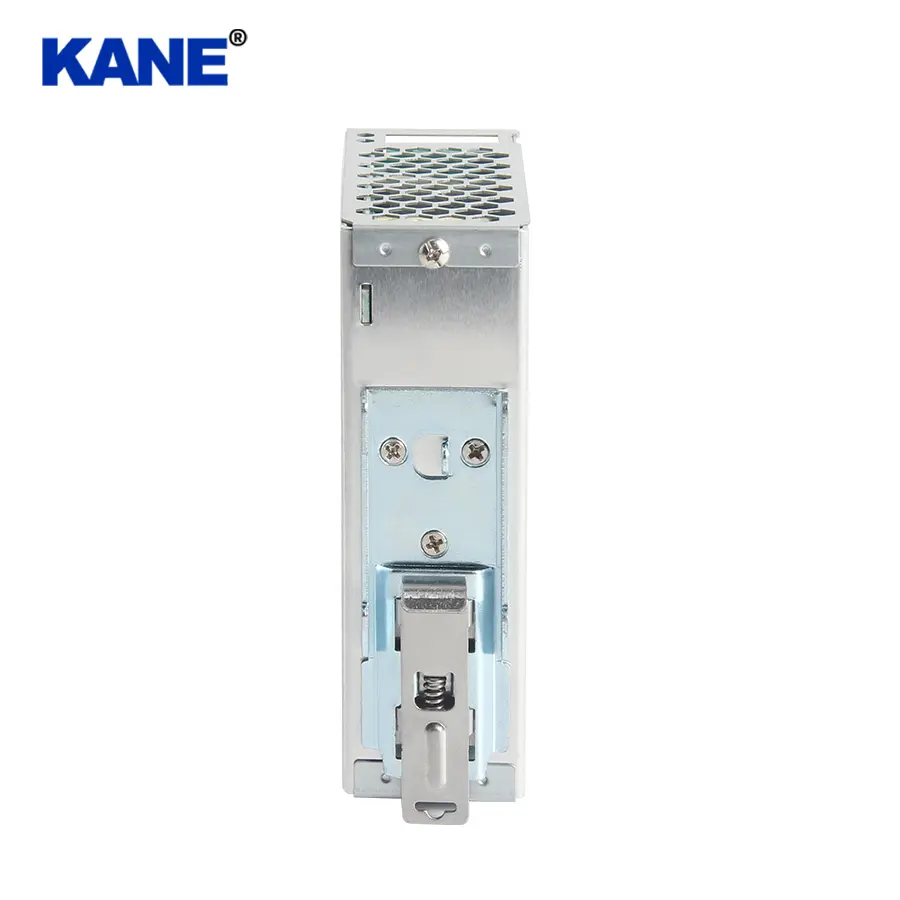

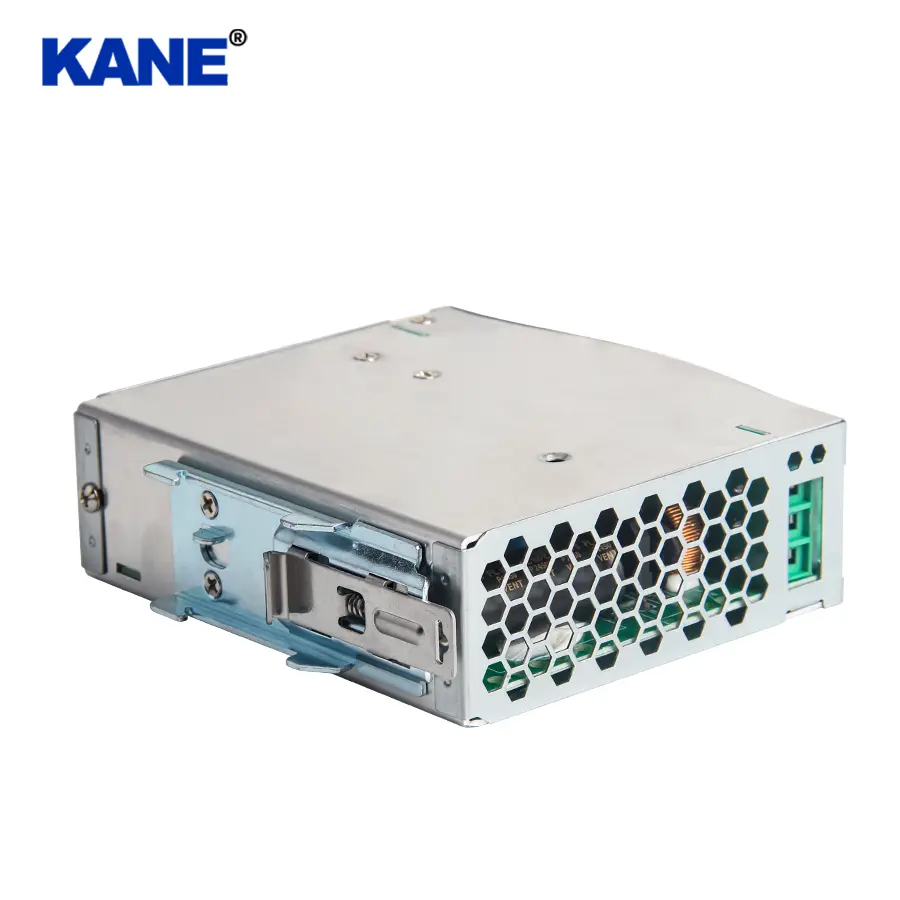

●DIN Rail:TS-35/7.5 or TS-35/15
●Built-in active PFC (NDR-240/480)
●Cooling by free air convection
●Protections: Short Circuit/Overload/Over Voltage/Over Temp.
●DC output voltage adjustable
●Built-in constant current limiting circuit
●EN61000-6-2(EN50082-2) industrial immunity level
●UL508 (industrial control equipment) approved
●LED indicator for power on
Models
| Model No. | NDR-75 | NDR-120 | NDR-240 | NDR-480 |
| Vout/lout | 12V,0~6.3A | 12V, 0~10A | 24V,0~10A | 24V,0~20A |
| 24V,0~3.2A | 24V,0~5A | 48V,0~5A | 48V,0~10A | |
| 48V,0~1.6A | 48V,0~2.5A | |||
| Dimension(mm) | 32×125.2×102 | 40×125.2×113.5 | 63×125.2×113.5 | 85.5×125.2×128.5 |

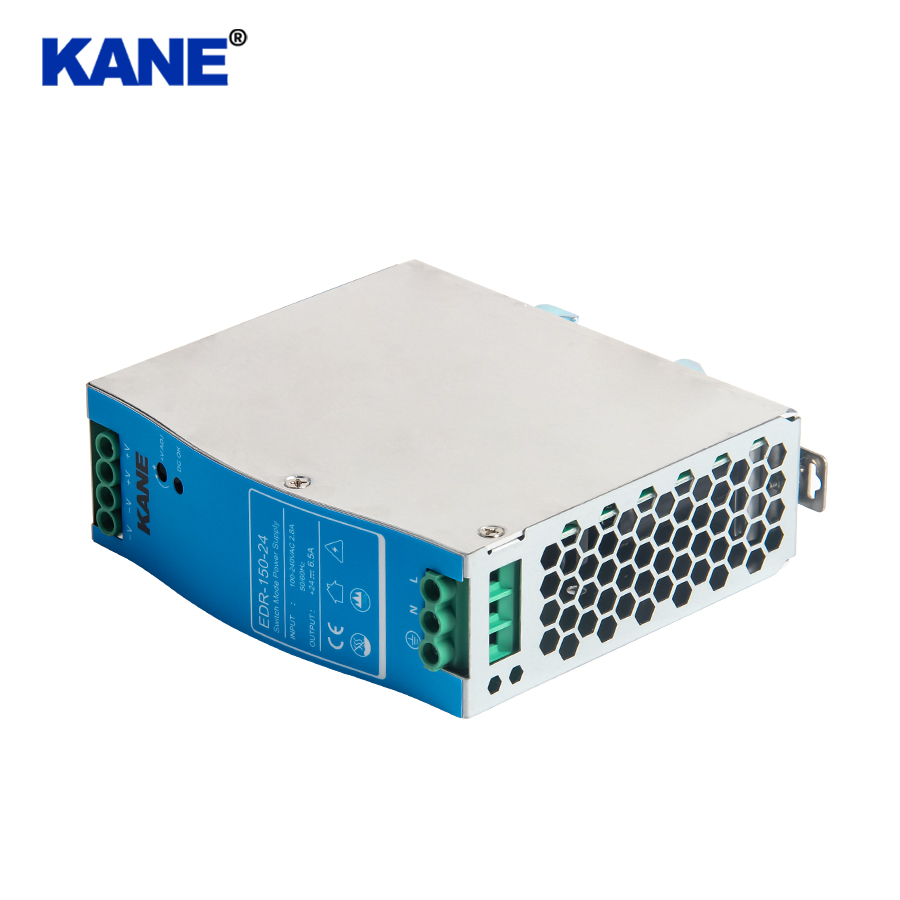

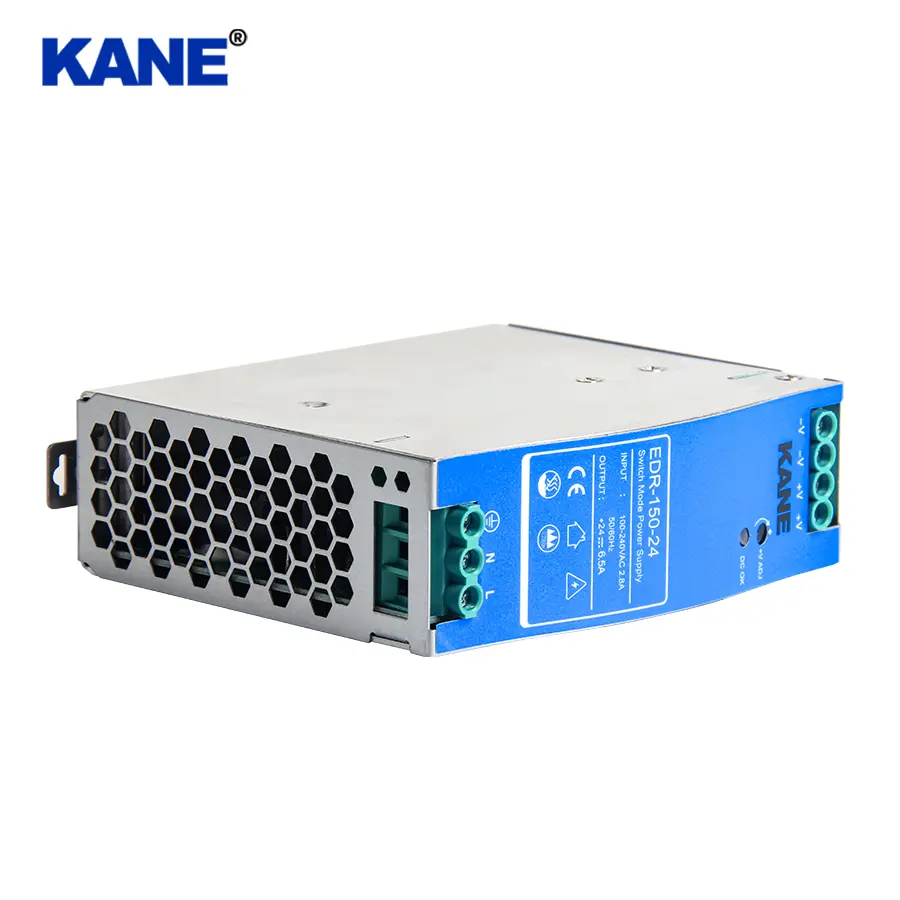

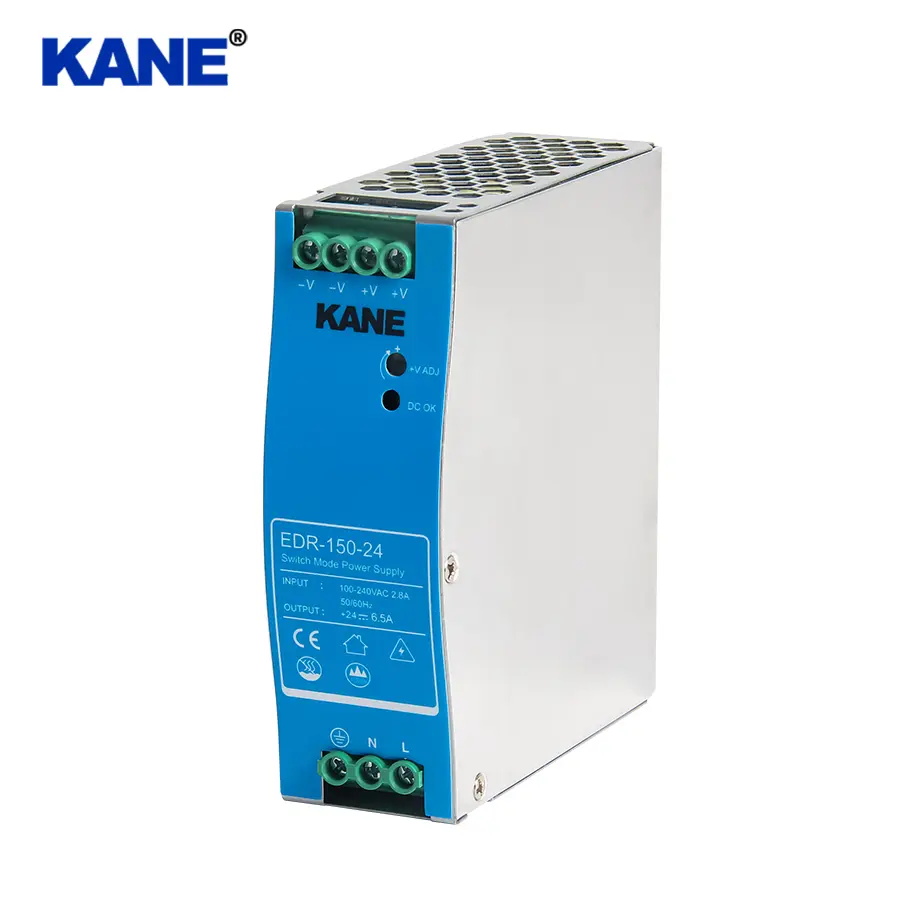

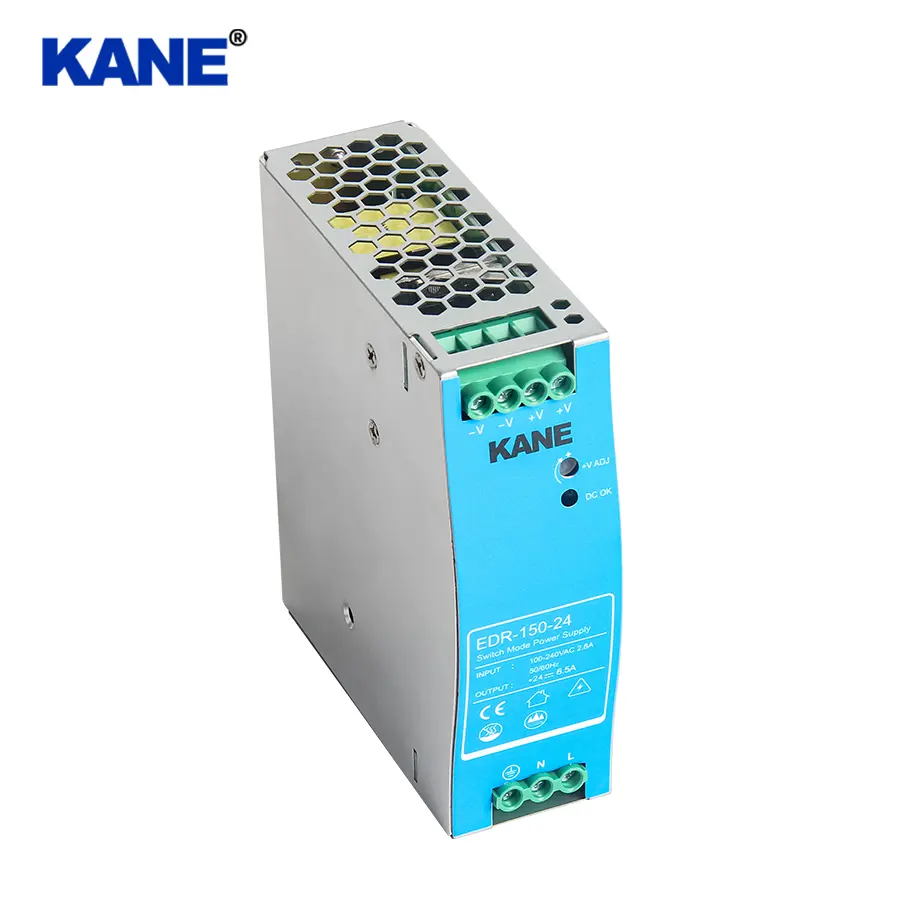

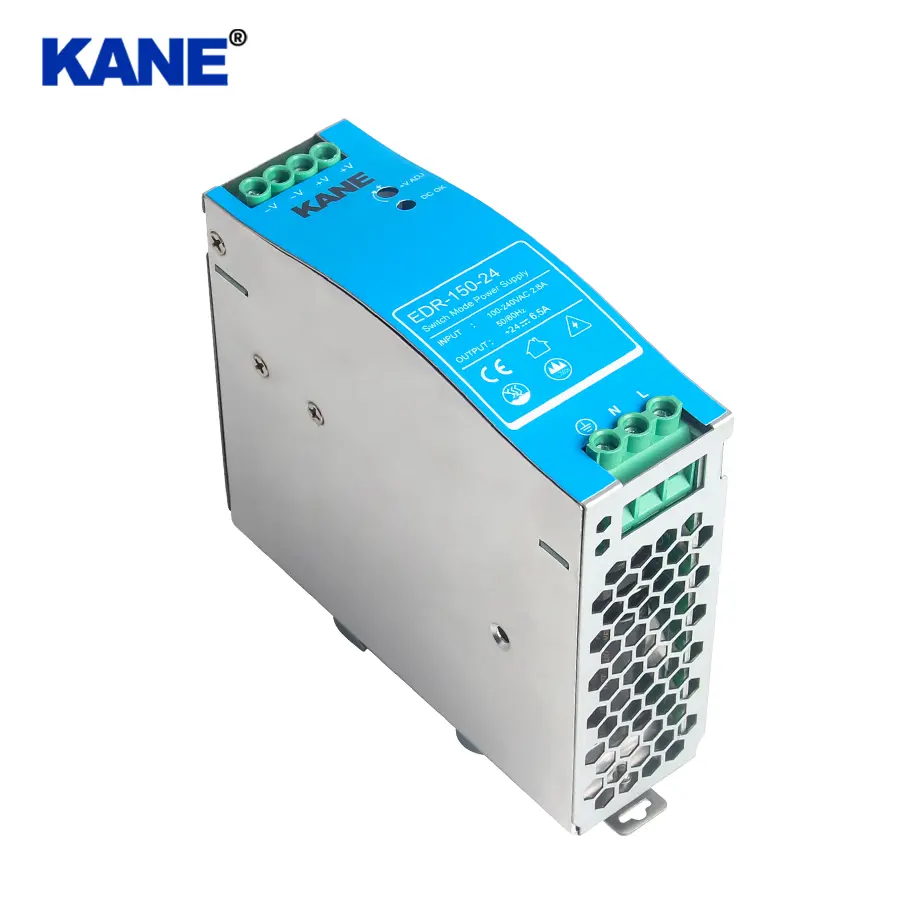

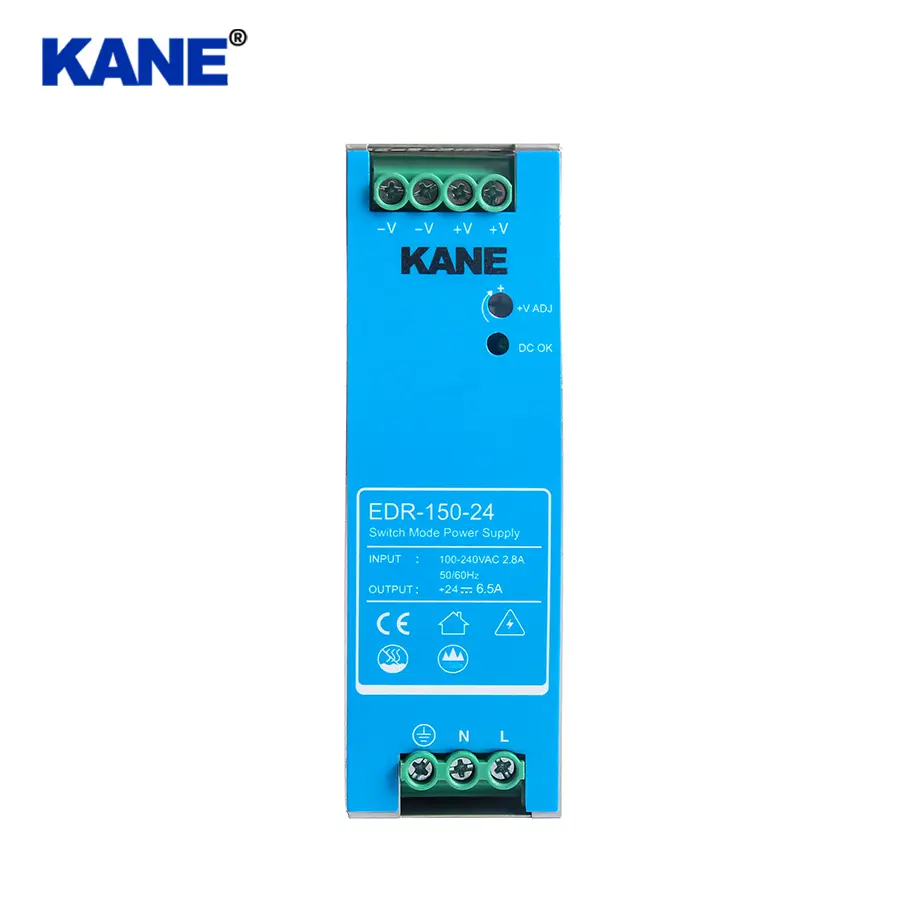

| Model No. | EDR-75 | EDR-120 | EDR-150 |
| Vout/lout | 12V, 0~6.3A | 12V, 0~10A | 24V,0~6.5A/0~5.2A |
| 24V,0~3.2A | 24V, 0~5A | ||
| 48V,0~1.6A | 48V,0~2.5A | ||
| Dimension(mm) | 32×125.2×102 | 40×125.2×113.5 | 40×125.2×113.5 |
EDR VS. NDR
|
Difference Series |
EMI | Working Temp. | Warranty | |
| EDR | Class A | -20~+60℃ | 2 years | |
| NDR | Class B | -20~+70℃ | 3 years | |
